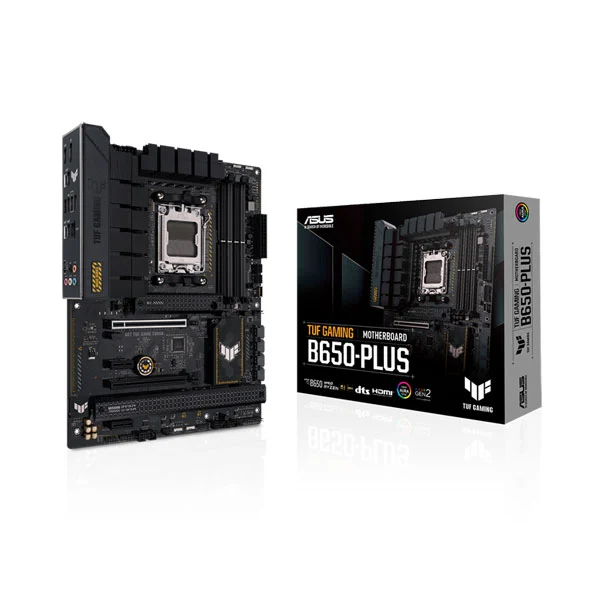

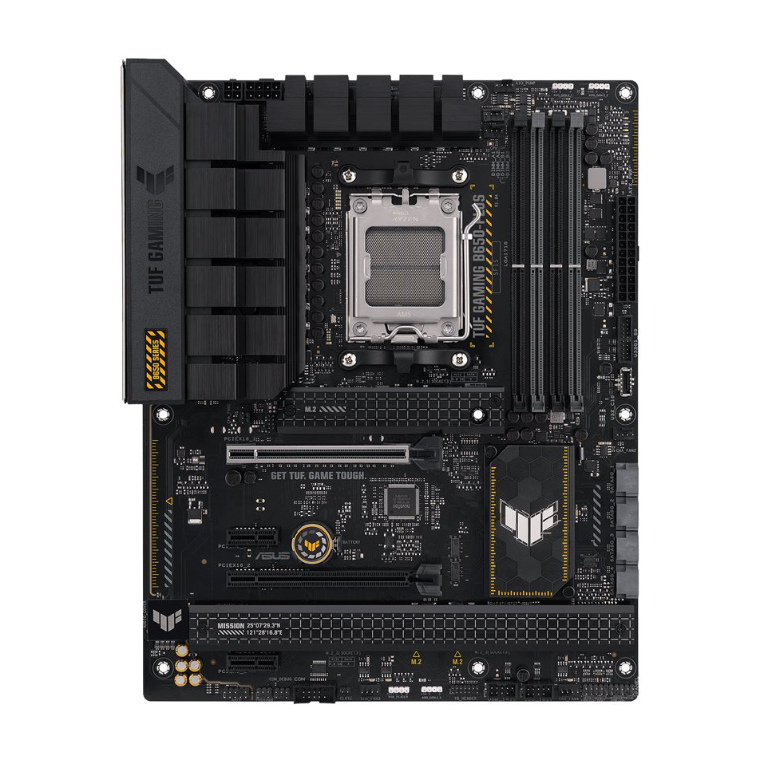

ASUS TUF Gaming B650-Plus (90MB1BY0-M0EAY0)

Motherboard - ATX - Socket AM5 - AMD B650 Chipset

USB-C 3.2 Gen 2x2, USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - Onboard graphics (CPU required) - HD Audio (8-channel)

Overview

ASUS TUF Gaming B650-Plus takes all the essential elements of the AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF Gaming motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Key Features

• CPU performance boost
• All-around energy efficiency
• UEFI BIOS
• Teamed power stages
• 8 + 4 pin ProCool power connectors
• TUF chokes
• TUF capacitors
• Digi+ VRM
• DDR5 OC 6400
• PCIe 5.0 support
• Enlarged VRM heatsink
• Optimized M.2 heatsink design
• 2.5 Gb Ethernet
• Two-way AI noise cancelation
• Realtek 7.1 surround sound
• DTS Audio Processing
• Addressable Gen 2 RGB header

Product Features

CPU Performance Boost

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Teamed Power Stages

12 + 2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

8 + 4 Pin ProCool Power Connectors

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Chokes

Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

TUF Capacitors

The TUF 5K metallic capacitors provide 52% wider temperature tolerance and a 2.5x-longer lifespan than standard motherboard capacitors.

Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is fine-tuned for ultra-smooth and ultra-clean power delivery to the CPU at all times.

DDR5 OC 6400

Comprehensive memory tuning options are the cornerstone of TUF Gaming motherboards. With TUF Gaming B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

PCIe 5.0 Support

Features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps. All M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

Optimized M.2 Heatsink Design

All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

Connectivity

TUF-GAMING B650 motherboards include the latest PCI Express version and an arsenal of USB ports including three Type-C connections and Thunderbolt (USB4) support.

2.5 Gb Ethernet

2.5 Gb on-board Ethernet delivers a bandwidth improvement of up to 2.5x. Using your existing LAN cable, you can experience smoother, lag-free gaming, high-resolution streaming, and faster file transfers.

Two-Way AI Noise Cancelation

This ASUS-exclusive utility uses a deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices.

Realtek 7.1 Surround Sound

Custom audio codec co-designed with Realtek for pristine audio quality with a 108 dB signal-to-noise ratio for the stereo line out and 103 dB SNR for line-in.

DTS Audio Processing

Enhances audio experiences by reducing distortion, delivering deeper bass, and allowing for customizable audio settings.

Addressable Gen 2 RGB Header

Three addressable Gen 2 RGB headers support up to 500 LEDs on Gen 2 RGB devices with backward compatibility for existing Aura Sync gear.

Main Specification

• Product Description: ASUS TUF Gaming B650-Plus - motherboard - ATX - Socket AM5 - AMD B650
• Product Type: Motherboard - ATX
• Chipset Type: AMD B650
• Processor Socket: 1 x Socket AM5
• Compatible Processors: Ryzen (supports Ryzen 7000 Series)
• Max RAM Size: 128 GB
• RAM Supported: 4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered
• Storage Ports: 4 x SATA-600 (RAID), 3 x M.2
• USB / FireWire Ports:
  • 1 x USB-C 3.2 Gen 2x2
  • 1 x USB-C 3.2 Gen 2
  • 2 x USB 3.2 Gen 2
  • 4 x USB 2.0
  • 1 x USB-C 3.2 Gen 1 (header)
  • 2 x USB 3.2 Gen 1 (header)
  • 4 x USB 2.0 (header)
• Audio: HD Audio (8-channel)
• LAN: 2.5 Gigabit Ethernet
• Manufacturer Warranty: 3-year warranty

Extended Specification

General

• Product Type: Motherboard - ATX
• Chipset Type: AMD B650
• Processor Socket: Socket AM5
• Max Processors Qty: 1
• Compatible Processors: Ryzen (supports Ryzen 7000 Series)

Expansion / Connectivity

Expansion Slots

• 1 x CPU
• 4 x DIMM 288-pin
• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x16 (x4 mode - auto turn-off if 3rd M.2 is occupied)
• 2 x PCIe 4.0 x1
• 2 x M.2 socket (2242/2260/2280 M.2 Key M)
• 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M)

Storage Interfaces

• 4 x SATA-600 (RAID 0 / RAID 1 / RAID 10)
• 2 x M.2 PCIe 4.0 (RAID 0 / RAID 1 / RAID 10)
• 1 x M.2 PCIe 5.0 (RAID 0 / RAID 1 / RAID 10)

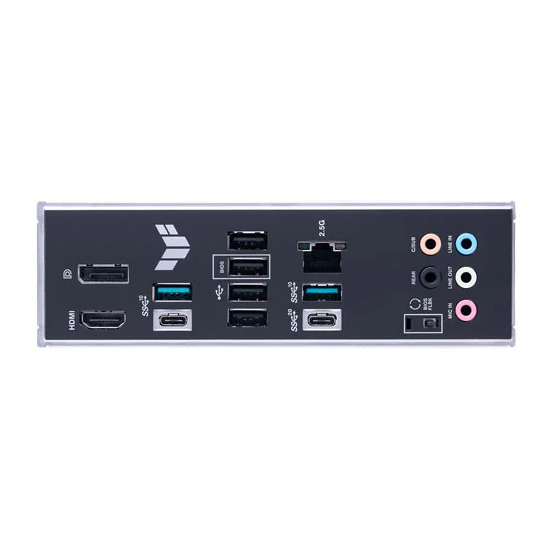

Interfaces

• 1 x HDMI
• 1 x DisplayPort
• 1 x USB-C 3.2 Gen2x2
• 2 x USB 3.2 Gen 2
• 1 x USB-C 3.2 Gen 2
• 4 x USB 2.0
• 5 x Audio Mini-jacks (line-in, line-out, mic, rear, center/subwoofer)
• 1 x LAN (2.5Gb Ethernet)

Internal Interfaces

• 1 x USB-C 3.2 Gen 1 - header
• 2 x USB 3.2 Gen 1 - header
• 4 x USB 2.0 - header
• 1 x audio - header
• 1 x Thunderbolt - header
• 1 x serial - header

Power Connectors

• 24-pin main power connector
• 8-pin ATX12V connector
• 4-pin ATX12V connector

Manufacturer Warranty

• Limited warranty - 3 years

Miscellaneous

• Included Accessories: 2 x M.2 rubber package, M.2 screw package, TUF certification card
• Cables Included: 2 x Serial ATA cable
• Software Included: Armoury Crate, ASUS Fan Xpert 4, ASUS AURA Creator, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR
• Compliant Standards: DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE
• Width: 30.5 cm
• Depth: 24.4 cm

Audio

• Type: HD Audio (8-channel)
• Compliant Standards: High Definition Audio

Features

• BIOS Type: AMI
• BIOS Features: UEFI BIOS, ASUS EZ Flash 3
• Hardware Features: ASUS OptiMem II, TUF LANGuard, jack retasking, audio jack detect technology, BIOS FlashBack button, Water Pump Header, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 Phase Power Design, 60A Power Stage, TUF Components, Enlarged Chipset Heatsink

LAN

• Network Interfaces: 2.5 Gigabit Ethernet

Supported RAM

• Max Size: 128 GB
• Technology: DDR5
• Bus Clock: 4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
• RAM Integrity Check: Non-ECC, on-die ECC, ECC
• Registered or Buffered: Unbuffered
• Features: Dual channel memory architecture, AMD EXPO technology
